Technical data

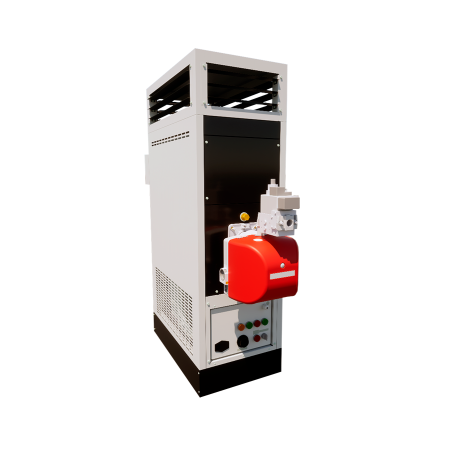

Hot air generator with 69kW thermal power for fast and efficient heating of commercial, industrial and agricultural premises of up to 1,700 m3

  • Model: MM-070-G
  • Type of fuel: Gas oil, natural gas or propane gas
  • Rated power: 69 kW
  • Thermal performance: 90%
  • Air flow: 4.400 m3/h
  • Motor power fan: 0,79kW
  • Electrical voltage: 230V/I/50Hz
  • Sound level at 3 m: 64 dB (A)
  • Dimensions (Width / Bottom / Height): 550/1000/1500mm
  • Drive section: 900x490mm
  • Smoke outlet: 150mm
  • Weight: 172 kg

Main features

  • Compact and robust equipment
  • Tubular exchanger with thermal efficiency greater than 90%
  • Exterior finish in oven-dried polyester paint
  • Thermal insulation with air chamber and / or fiberglass
  • Centrifugal fan unit with built-in motor.
  • Electrical control panel and protection.
  • Thermostats for the activation and stopping of the burner and fan.
  • Safety thermostat.
  • Upper hot air outlet to apply network of ducts, grids or rotating nozzles
