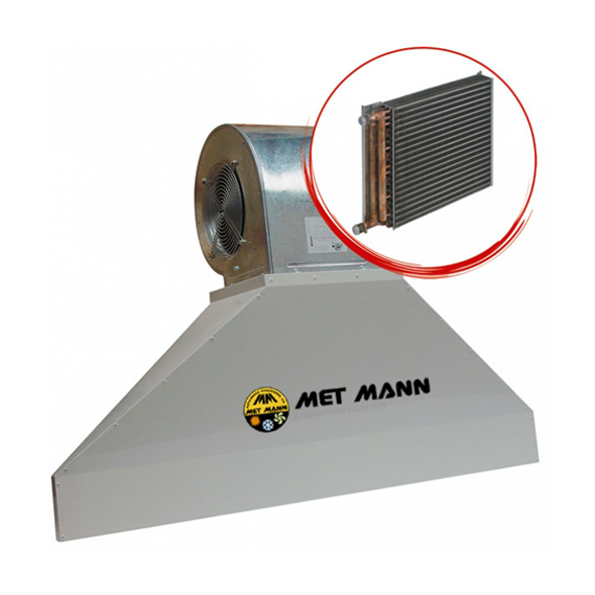

VIS- 40-BAR – Industrial air curtain (with water coil)

Ref.: VIS 60 BAR-1

Industrial ventilation and air curtains VIS MANN - Industrial air curtains with centrifugal fan, standard and custom manufacturing

Technical data

Industrial hot air curtain with water exchanger for doors from 3.5m to 4.5m in height

Air flow (Max/Med/Min): 2,910 / 1,950 / 1,490 m3/h
Heating power: 35,850 / 27,200 / 22,590 W
Sound level (Max/Med/Min): 61 / 54 / 49 dB (A)
Door height (Max/Med/Min): 4.5 / 4 / 3.5 m
Gate width: 1.4 m
No. of speeds: 3
Fan power: 1150 W
Electrical voltage: 230V/I/50Hz
Hydraulic connection: 1″ M

Main features

3-speed centrifugal fan with protection grill.
Tilt-adjustable wall bracket.
Air diffuser in galvanized steel painted in white RAL 9002.
Water exchanger.
Single-phase voltage supply.
For wider doors, several units can be installed.

Files

Catalog
