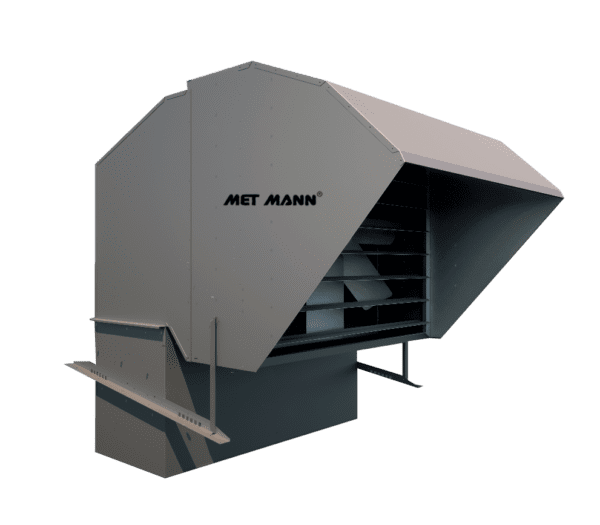

HELIX BOX MANN 110 – High-flow roof extractor of 20.700 m3/h

Ref.: HELIX BOX MANN 110

HELIX BOX MANN - High-flow, low-noise roof extractors with an extraction capacity of 20,700 m3/h to 36,700 m3/h Industrial ventilation and air curtains

Technical data

20,700 m3/h roof extractor for the extraction of hot, stale air or vapors in industrial buildings, warehouses, farms, greenhouses, etc.

Air flow: 20,700 m3/h
Motor power: 0.75 kW
Electrical voltage: 400V/III/50 Hz
Opening type: Automatic
RPM: 500
Dimensions (width / depth / height): 1005 x 2097 x 1776 mm
Weight: 154kg

Main features

External structure in galvanized steel
rain visor
Overpressure shutter with automatic opening
Electric fan with stainless steel blades.
The roof anchors are designed to adapt to any inclination of the roof.
Air inlet with protection grid
The supply is made with a complete fan and disassembled metal box with its corresponding assembly manual.
