Technical data

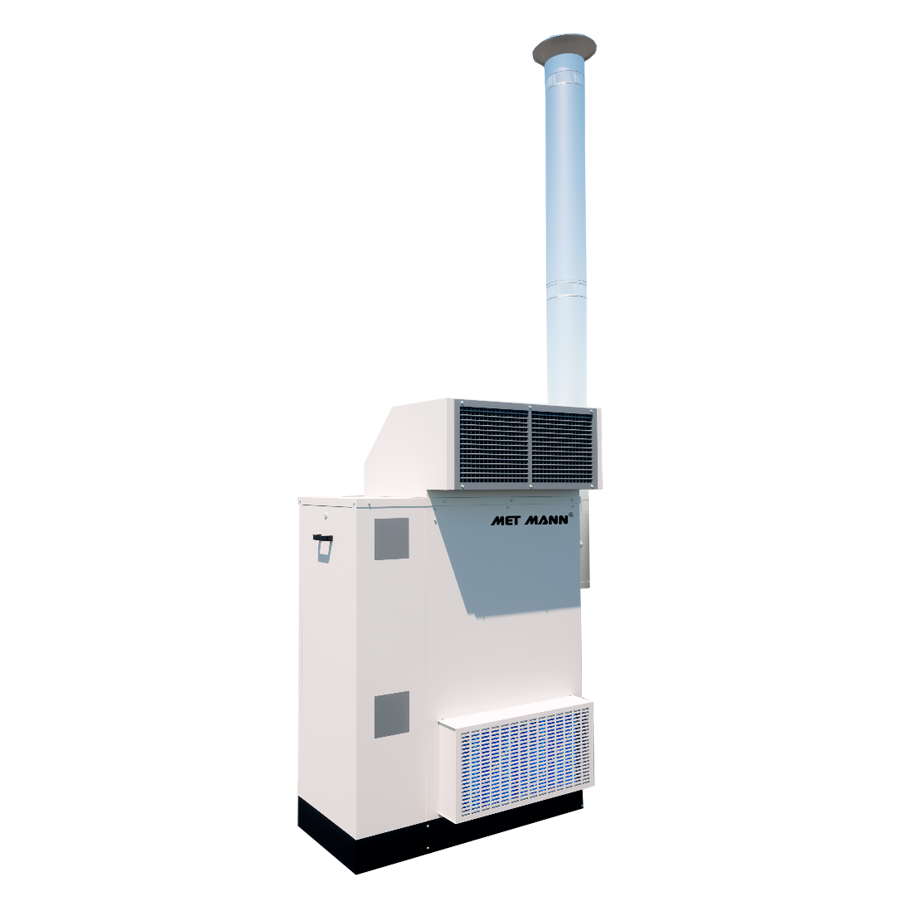

50 kW hot air generator designed to be installed outside the room to be heated. Ideal for fast and efficient heating of swimming pools, commercial, industrial and agricultural premises up to 1,075 m3.

  • Model: PM-050
  • Type of fuel: Diesel, natural gas or propane gas
  • Nominal power: 50 kW
  • Thermal performance: 90%
  • Air flow: 1,200 to 4,000 m3 / h
  • Fan motor power: 0.59 kW
  • Electrical voltage: 230V / I / 50Hz
  • Sound level at 3m: 60 dB (A)
  • Dimensions (Width / Depth / Height): 1322/606 / 3305mm
  • Drive section: 700x300mm
  • Smoke output: 120mm
  • Weight: 260 kg



Main features

  • Compact and robust equipment
  • Tubular heat exchanger with thermal efficiency higher than 90%
  • Outer finish in oven-dried polyester paint
  • Thermal insulation with air chamber and / or fiberglass
  • 3-speed fan group.
  • Electrical control and protection panel.
  • Armored room thermostat.
  • Thermostats of activation and stop of the burner and fan.
  • Safety thermostat.
  • Soundproof room of the burner.
  • Air intake filter to prevent dust from entering the room to be heated.
  • Air duct with double deflection grid or to drive the air.
  • Insulated fireplace in stainless steel.
