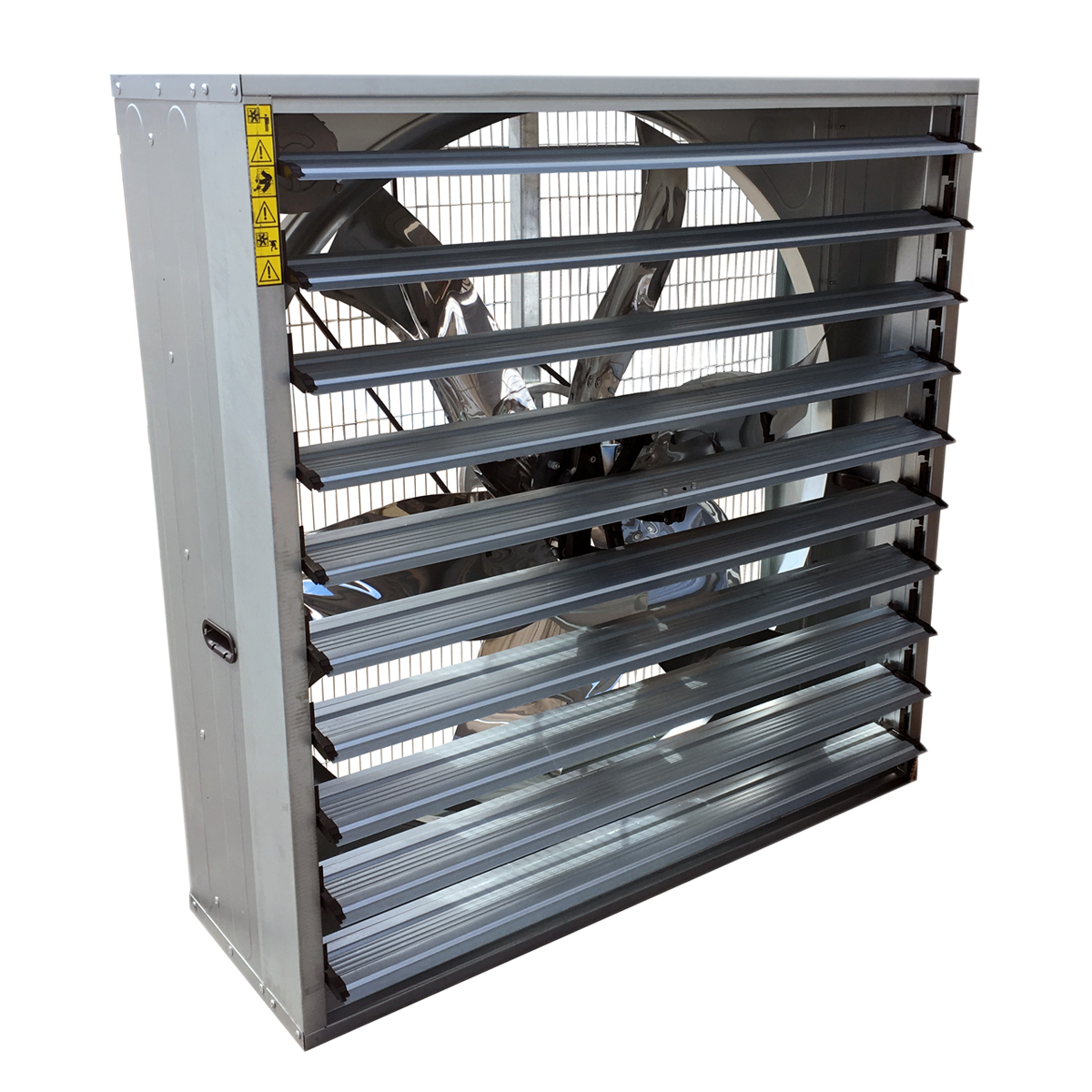

HELIX MANN 1000 – High flow wall fan of 20.700 m3/h

Ref.: HELIX MANN 1000

HELIX MANN - High-flow, low-noise wall-mounted extractors with an extraction capacity of 20,700 m3/h to 36,700 m3/h Industrial ventilation and air curtains

Technical data

High-flow, low-revolution fan of 20,700 m3/h, ideal for the extraction and ventilation of warehouses, farms, greenhouses, etc.

Air flow: 20,700 m3/h
Opening type: mechanical
Propeller diameter: 910mm
RPM: 500
Sound level: 64 dB (A) at 3 m
Dimensions (Width/Height/Depth): 1000 x 1000 x 450 mm
Weight: 52kg

Main features

Exterior structure in galvanized steel.
AISI 430 BA stainless steel propellers (6 units)
Three-phase motor of 0.75 kW IP 55 400V/III/50Hz
Overpressure shutters made of galvanized steel.
High quality drive belt.
Pulleys made of aluminum.
Tensioning base to tighten the straps.
Slits for easy transport.

Files

Data sheet
