Technical data

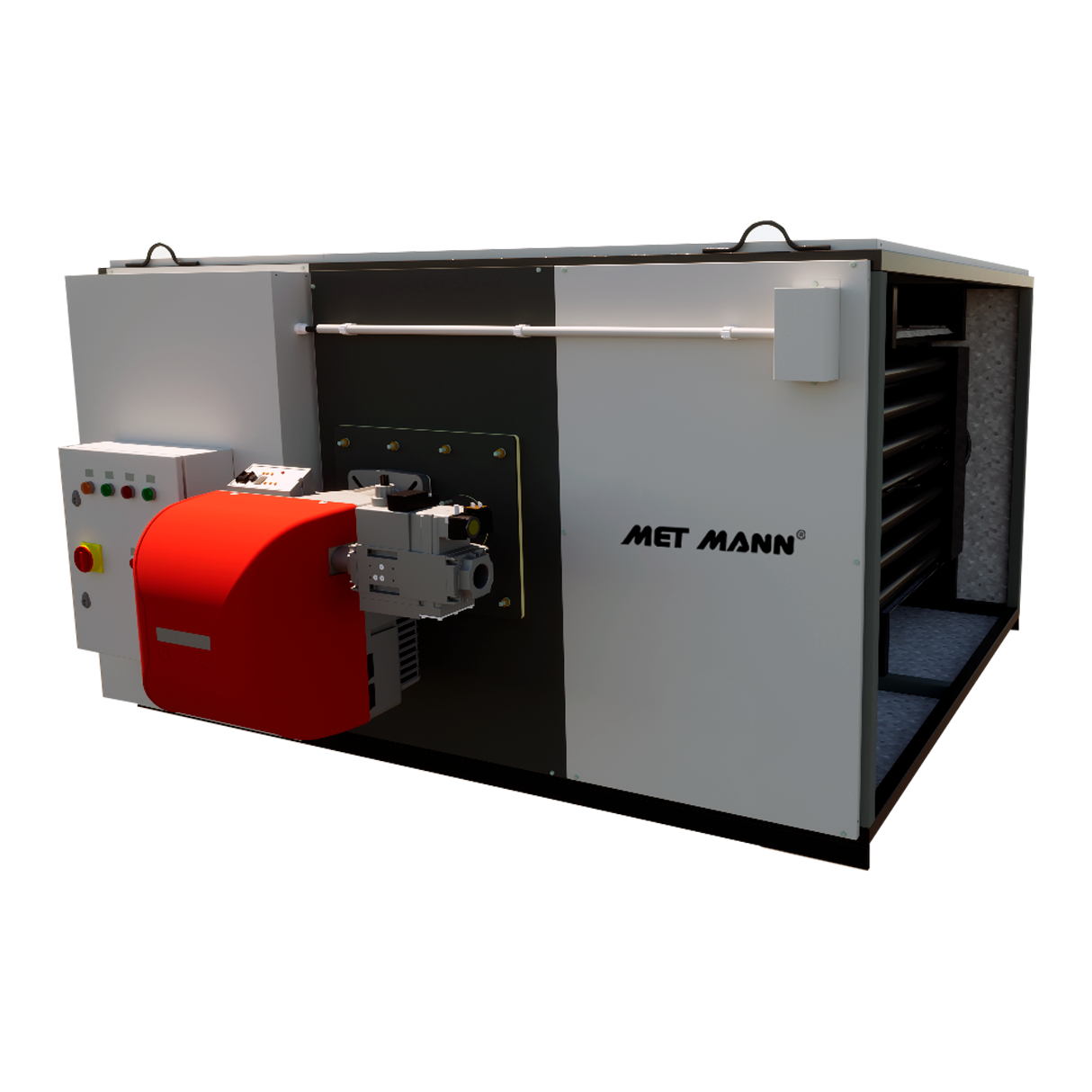

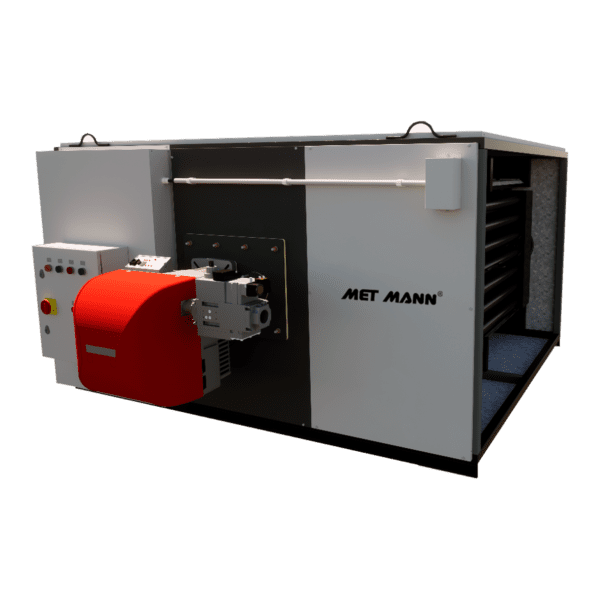

Hot air heater for pressurized cabins with a heat output of 293 kW and an air flow of  38,000 m3/h with a thermal jump of 17 ºC.

  • Model: CP-200
  • Type of fuel: diesel, natural gas or propane gas
  • Nominal power: 293 kW
  • Thermal performance: 90%
  • Air flow: 38,000 m3/h
  • Available pressure: 280 Pa
  • Fan motor power: 11.00 kW
  • Electric voltage: 400V/III/50Hz
  • Dimensions (Width/Depth/Height): 1980/2120/1210mm
  • Drive section: 1670x1075mm
  • Smoke output: 200mm
  • Weight: 715 kg

Main features

Ideal equipment to be applied in all types of pressurized cabins where a flow of air, pressure and temperature is required.


  • Compact and robust equipment
  • Tubular heat exchanger with thermal efficiency higher than 90%
  • Outer finish in oven-dried polyester paint
  • Thermal insulation with air chamber and / or fiberglass
  • Double centrifugal fan with transmission motor.
  • Electrical control and protection panel.
  • Thermostats of activation and stop of the burner and fan.
  • Safety thermostat.
  • Possibility of supply in horizontal or vertical.
