Technical data

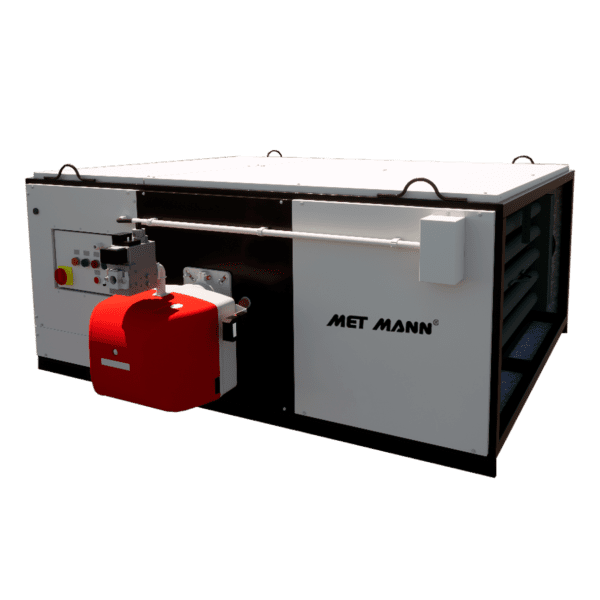

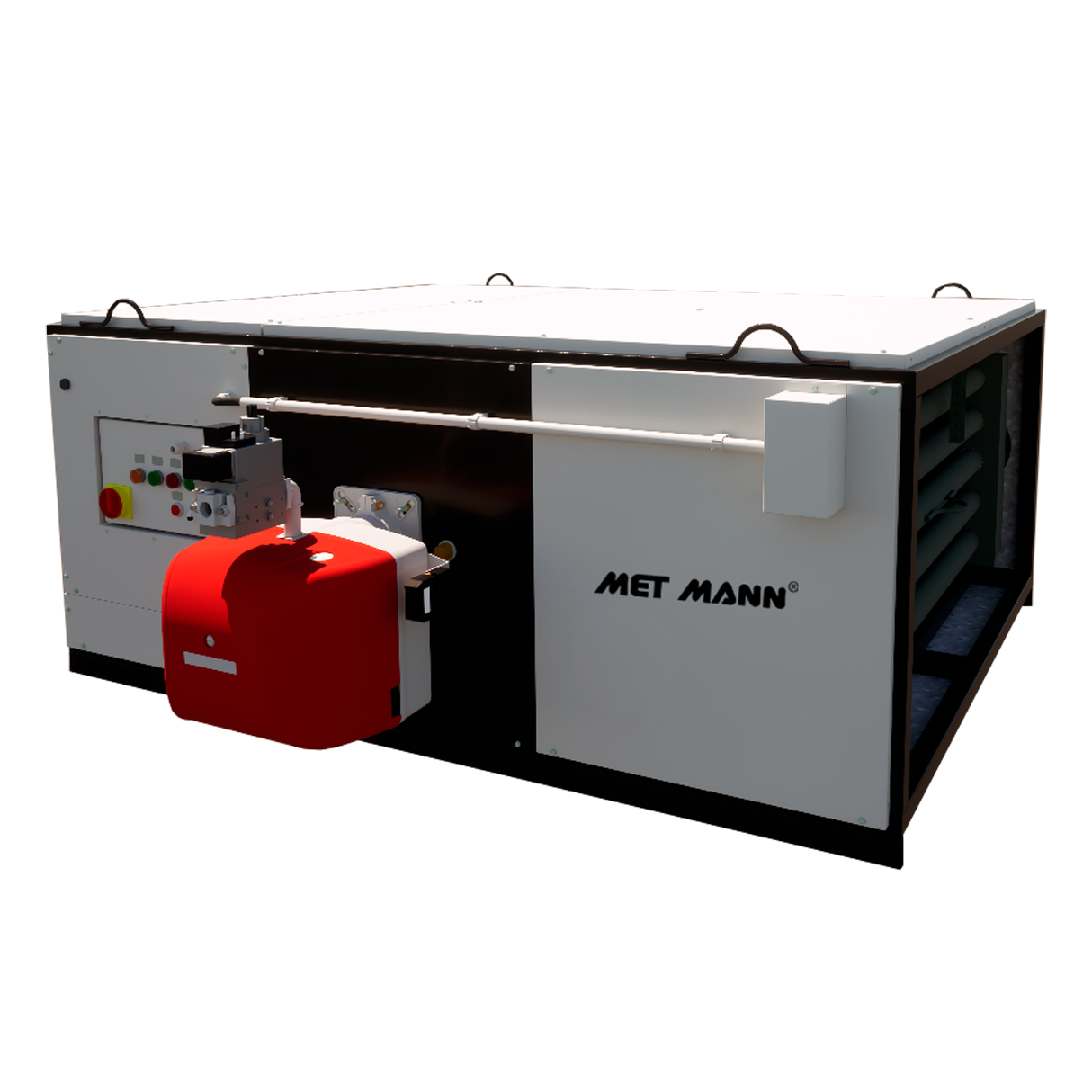

Hot air heater for pressurized cabins with a heat output of 123 kW and an air flow of 14,700 m3/h with a thermal jump of 20 ºC.

  • Model: CP-090
  • Type of fuel: diesel, natural gas or propane gas
  • Nominal power: 123 kW
  • Thermal performance: 90%
  • Air flow: 14,700 m3/h
  • Available pressure: 200 Pa
  • Fan motor power: 4.00 kW
  • Electric voltage: 400V/III/50Hz
  • Dimensions (Width / Depth / Height): 1530/1825/785mm
  • Drive section: 1310x635mm
  • Smoke output: 200mm
  • Weight: 430 kg


Main features

Ideal equipment to be applied in all types of pressurized cabins where a flow of air, pressure and temperature is required.


  • Compact and robust equipment
  • Tubular heat exchanger with thermal efficiency higher than 90%
  • Outer finish in oven-dried polyester paint
  • Thermal insulation with air chamber and / or fiberglass
  • Double centrifugal fan with transmission motor.
  • Electrical control and protection panel.
  • Thermostats of activation and stop of the burner and fan.
  • Safety thermostat.
  • Possibility of supply in horizontal or vertical.
