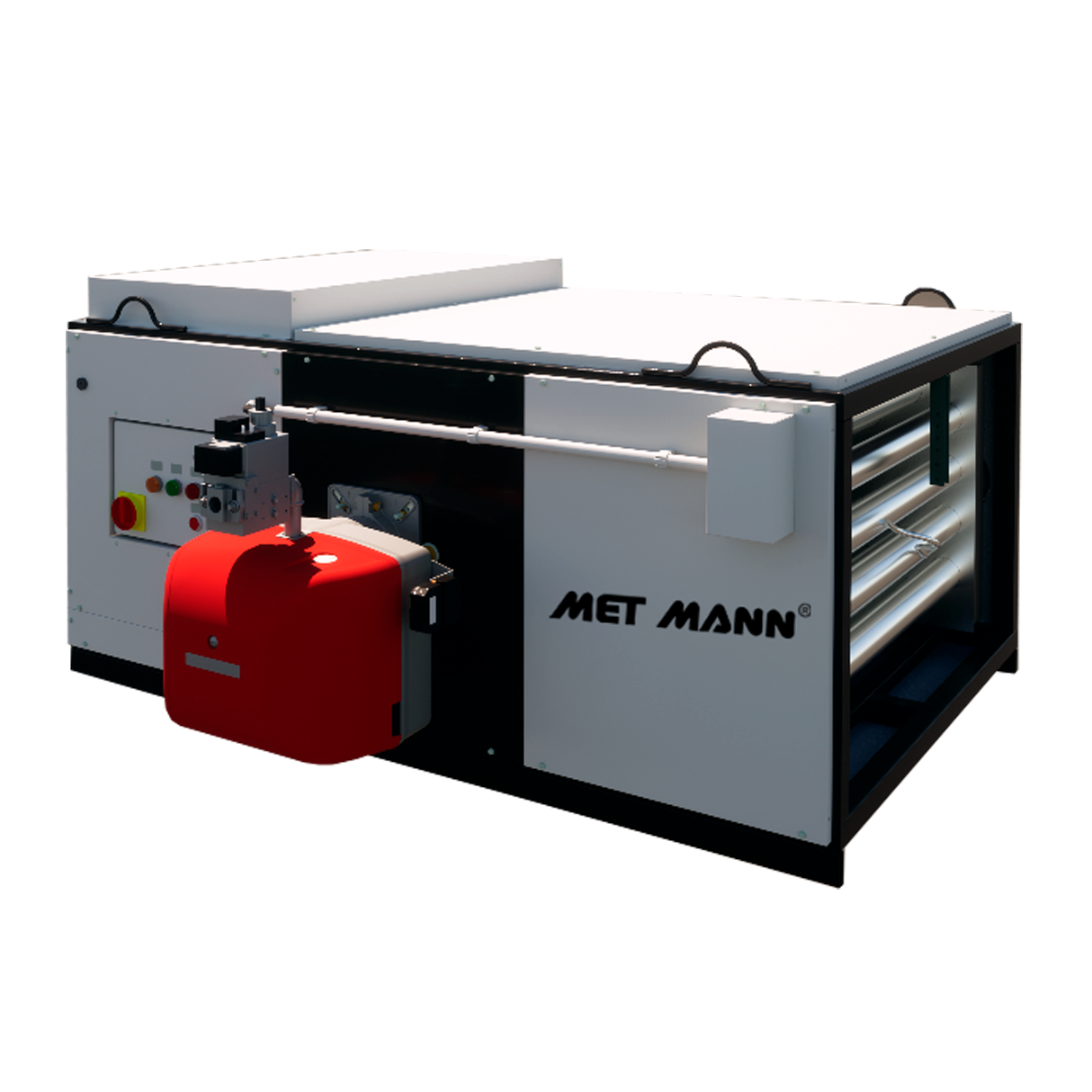

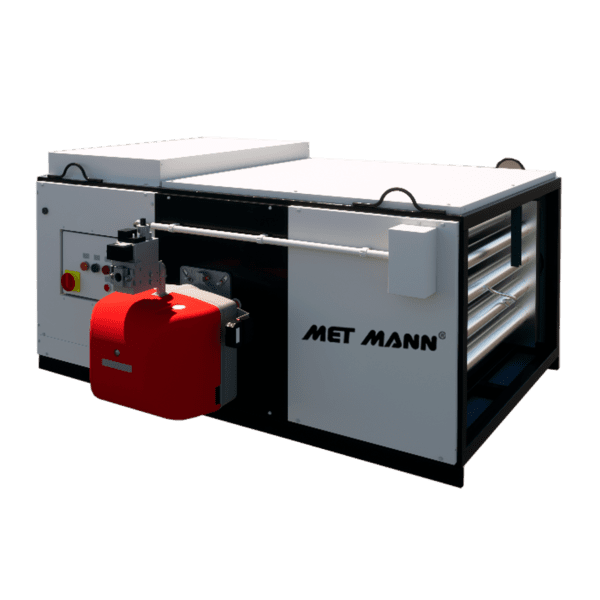

MM-090-W – Heater for drying processes 80 kW

Hot air heater for drying processes with a heating power of 80 kW and an air flow of 6.900 m3/h with a thermal jump of 29 ºC

•  Model: MM-090-W

• Type of fuel: diesel, natural gas or propane gas

• Nominal power: 80 kW

• Thermal performance: 90%

• Air flow: 6.900 m3/h

• Available pressure: 150 Pa

• Fan motor power: 1.50 kW

• Electrical voltage: 400V/III/50Hz

• Dimensions (Width/Depth/Height): 1095/1555/830mm

• Drive section: 995x590mm

• Smoke output: 150mm

• Weight: 240 kg


Ideal equipment for all types of drying processes in the food or industrial sector.


• Compact and robust equipment

• Tubular heat exchanger with thermal efficiency higher than 90%

• Outer finish in oven-dried polyester paint

• Thermal insulation with air chamber and / or fiberglass

• Centrifugal fan with transmission motor.

• Electrical control and protection panel.

• Thermostats of activation and stop of the burner and fan.

• Safety thermostat.

• Possibility of supply in horizontal or vertical.
