Technical data

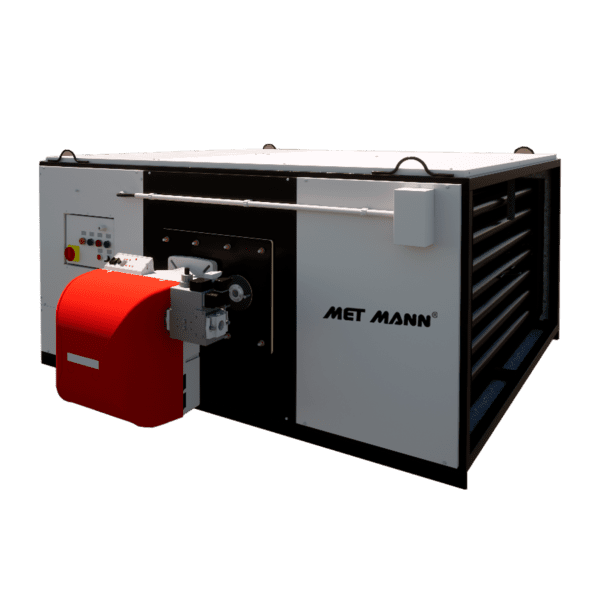

Hot air heater for drying processes with a heating power of 195 kW and an air flow of 17.500 m3/h with a thermal jump of 25 ºC

  • Model: MM-160-H
  • Type of fuel: diesel, natural gas or propane gas
  • Nominal power: 195 kW
  • Thermal performance: 90%
  • Air flow: 17.500 m3/h
  • Available pressure: 170 Pa
  • Fan motor power: 3.00 kW
  • Electrical voltage: 400V/III/50Hz
  • Dimensions (Width/Depth/Height): 1615/2050/987mm
  • Drive section: 1495x767mm
  • Smoke output: 250mm
  • Weight: 567 kg

Main features


Ideal equipment for all types of drying processes in the food or industrial sector

  • Compact and robust equipment
  • Tubular heat exchanger with thermal efficiency higher than 90%
  • Outer finish in oven-dried polyester paint
  • Thermal insulation with air chamber and / or fiberglass
  • Double centrifugal fan with transmission motor.
  • Electrical control and protection panel.
  • Thermostats of activation and stop of the burner and fan.
  • Safety thermostat.
  • Possibility of supply in horizontal or vertical.
