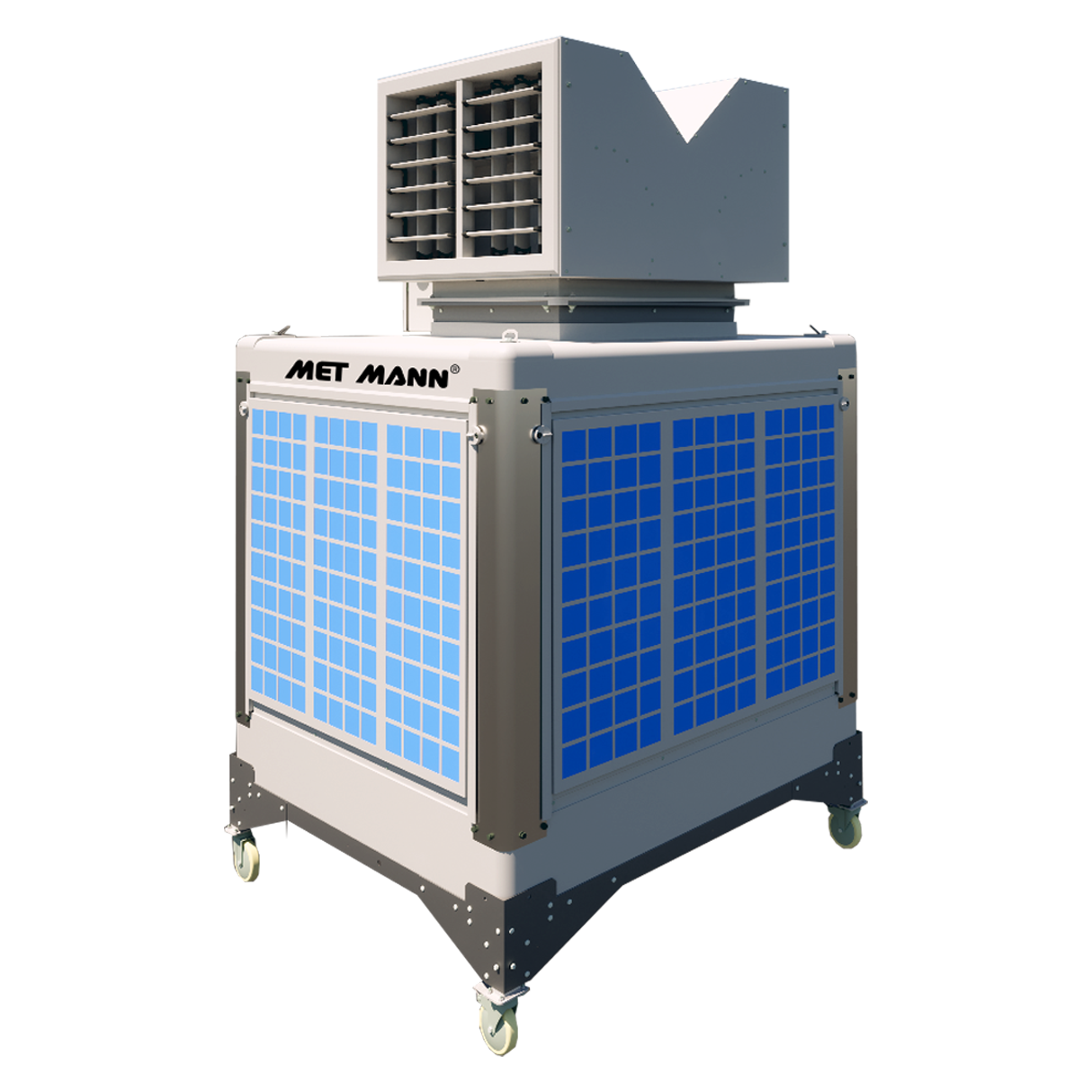

FR-15-100-022-VR DUO – Portable industrial evaporative cooler

Ref.: FR-15-100-022-VR-1

Evaporative industrial air coolers FRESC MANN PREMIUM - Portable evaporative air coolers with centrifugal fan, G4 air filters and UV treatment to cool work areas up to 250m2

Technical data

Portable evaporative cooler of 13.511 m3/h

Model: FR-15-100-022-VR DUO
Air flow: 13,511 m3/h
Cooler panel thickness: 100mm
Panel efficiency: 88%
Fan motor power: 2.20 kW
Fan speed: Variable
Sound level at 3m: 66 dB (A)
Voltage: 400V/III/50Hz
Dimensions (Width/Depth/Height): 1135 / 1135 / 1985 mm
Weight: 210kg

Main features

Water tray and roof made of thick polypropylene with UV protection.
Posts made of AISI-304 stainless steel.
Cooling panels type 5090, 100mm thick.
Intake grilles painted in polyester oven in gray RAL 7035.
Centrifugal fan group in galvanized steel.
Electrical panel with variable speed with ON/OFF switch.
10m hose with quick plug system.
Manual emptying system.
Quick opening of the panels with half-turn fasteners.
Hydraulic and electrical installation connected at the factory.
Air diffusion with front grill or DUO grill (optional).

Files

Data sheet
