M1/100 P – Silent bath extractor of 90/75 m3/h – With presence sensor

Sale!
Ref.: 6174

Original price was: 221,00 €.Current price is: 165,75 €. + VAT

Technical data

Ultra-quiet bathroom extractor with high-quality presence sensor for bathrooms and small rooms

  • 2 speeds
  • Delay on disconnection of 6 minutes.
  • Presence sensor that detects movement, temperature and speed.
  • Rear shutter

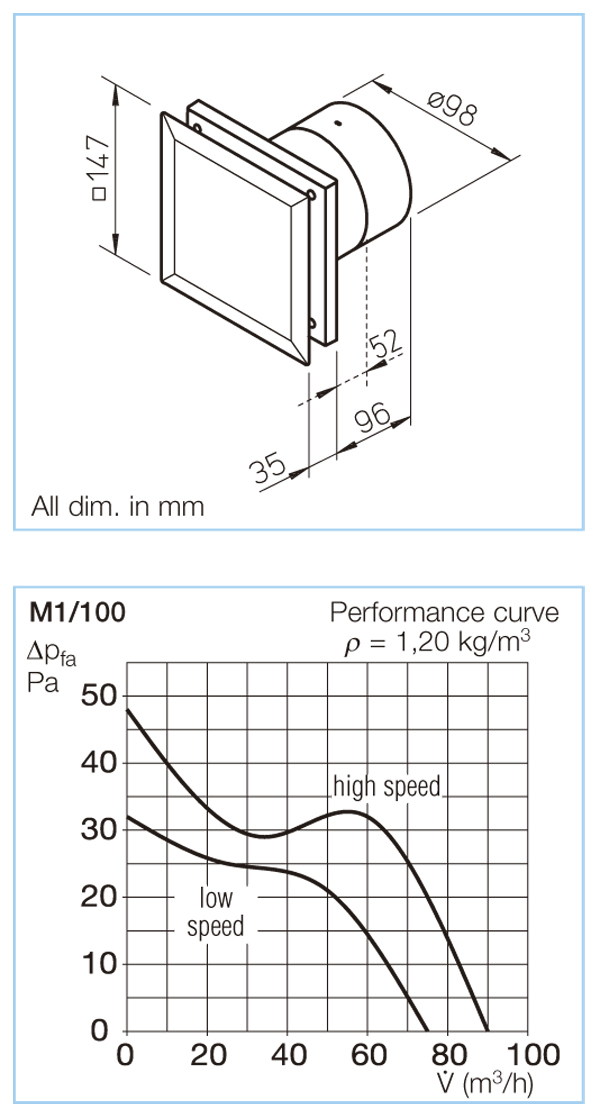

  • Airflow (Max / Min): 90/75 m3 / h
  • Propeller diameter: 92mm
  • Rpm (Max / min): 2650/2250 rpm
  • Electrical voltage: 230V
  • Electrical consumption (Max / Min): 9/5 W
  • Sound level (Max / min) at 3m: 30/25 dB (A)
  • Electrical connection cable: 3 x 1.5 mm2
  • Protection: IP 45
  • Maximum working temperature: 40ºC


Main features

  • Sound level of 25dB at low speed and 30dB at high speed.
  • Consumption of as much as 5W and 9W depending on the speed of the extractor.
  • High pressure available.
  • Compact dimensions.
  • Components made of high quality polymers.
  • High durability motor with protection against overheating.
  • Can be applied in ZONE 1 in bathrooms according to DIN VDE 0100-701.
  • Quick connectors for easy assembly.
