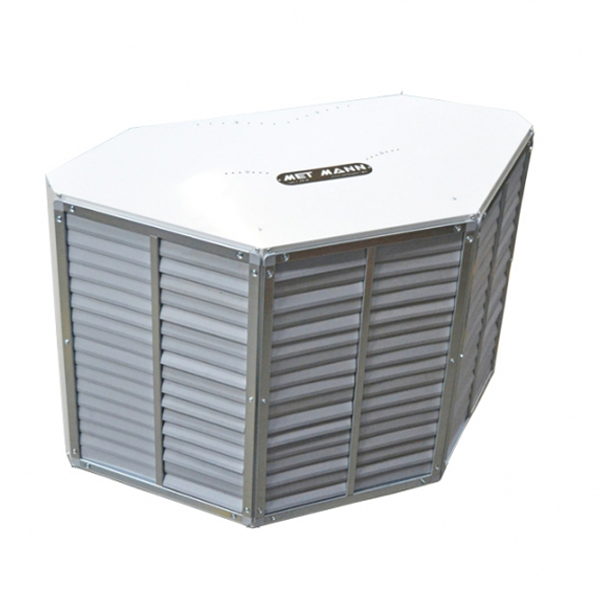

DCH-3/15 – Air diffuser with 3 outlets from 5,600 to 15,000 m3/h

Ref.: DCH-3/15

DCH- 3/6/CI - Diffuser cubes with 3 and 6 outlets and high induction nozzles for evaporative air conditioner installations Evaporative industrial air coolers

Technical data

3-way air diffuser for an air flow from 5,500 m3/h to 15,000 m3/h

Model: DCH-3/15
Admitted air flow: 5,600 to 15,000 m3 / h
Range at 0º: 12 to 32m
Range at 45º: 9 to 27m
Coupling section: 600x600mm
Grids: 3u of 600x250mm
Dimensions (Width / Depth / Height): 759/451 / 684mm
Weight: 22 kg

Main features

Made of galvanized steel and oven-painted gray RAL 7035.
Grille made of polyamide.
Its design allows the air to be diffused over a long distance.
Interior deflector to correctly direct the air flow.
Opening regulation from 0º to 90º.
Possibility of supply with double deflection grilles.
