Technical data

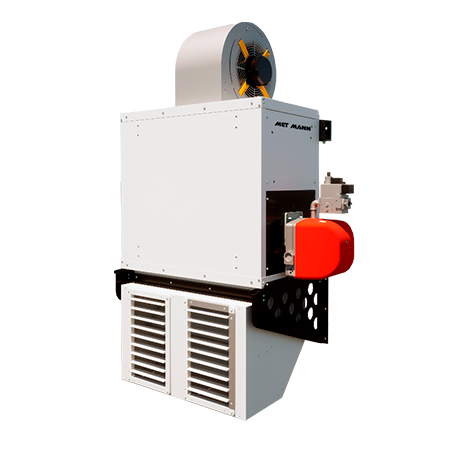

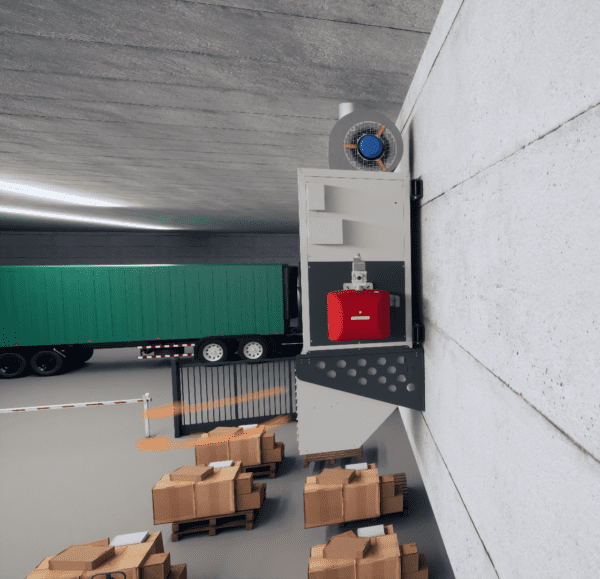

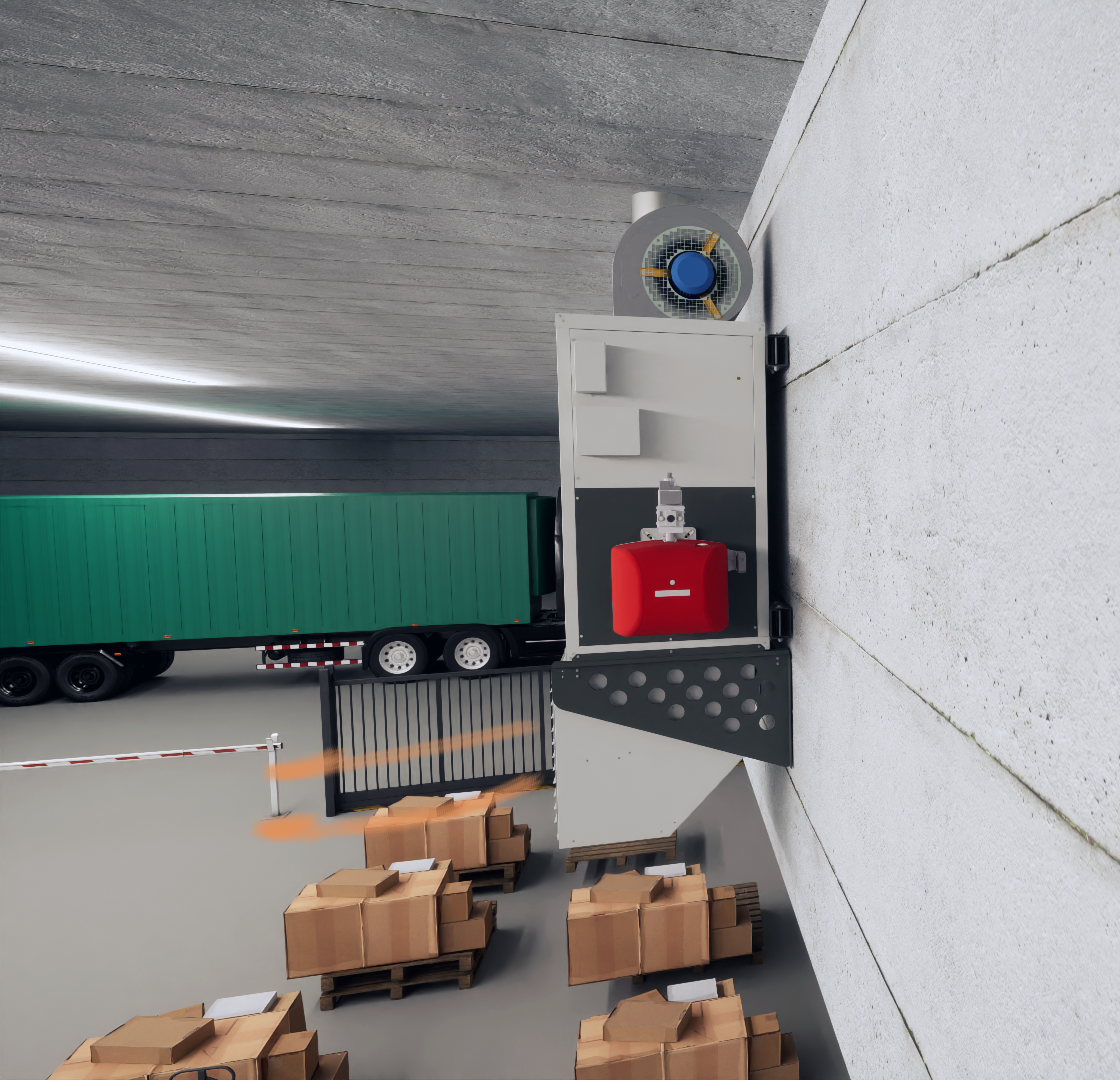

The AGM-Mural hot air generators are hot air equipment that allows you to heat medium and large surface spaces without taking up floor space.

  • Model: AGM-050
  • Fuel type: Diesel, natural gas or propane gas
  • Rated power: 43 kW
  • Thermal performance: 90%
  • Air flow: 3,500 m3/h
  • Available pressure: 150 Pa
  • Fan motor power: 0.79 kW
  • Electrical voltage: 230V/I/50Hz
  • Sound level at 3m: 61 dB (A)
  • Dimensions (Width/Depth/Height): / / / mm
  • Drive section: 830 x 460 mm
  • Smoke outlet: 120 mm
  • Weight: 213kg

Main features

  • High-performance combustion oven, made of stainless steel in the areas most exposed to heat.
  • Exterior panel made of galvanized steel, polyester powder lacquered and oven dried.
  • Thermal insulation of the areas most exposed to heat.
  • Electrical control and safety panel according to European regulations.
  • Control thermostats (Fan/Burner/Thermal safety).
  • Low noise centrifugal fan
  • Hot air outlet through simple deflection grilles.
  • Security system to control the correct depression of the combustion chamber
