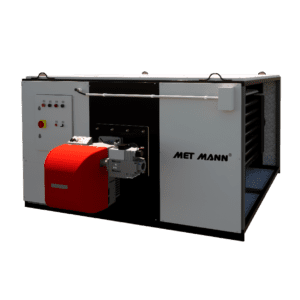

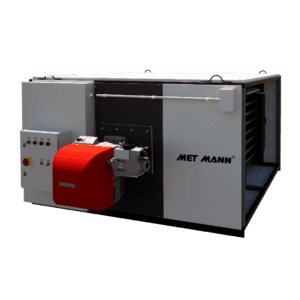

MM-H/W/CP - Hot air generators for industrial drying processes, post-harvest and paint booths. Heating power from 43 to 390 kW with customized flow rates and pressures

Parameters

Caudal de aire

Airflow

4.200 to 34.500 m3/h
Caudal de aire

Power

50 to 390 kW
Caudal de aire

Available fuels

diesel / natural gas / propane gas

Downloadable documentation

Our MM-H/W/CP hot air generators for industrial drying processes can run on diesel or gas and develop a heat output of 50 to 390 kW.

The hot air supplied to the drying process has a thermal jump from 16°C to 37°C and a large supply of air for rapid drying without altering the physical properties of the product.

For other types of drying where more temperature is required, we can carry out a specific study.

The range is made up of different models with temperature differences, air flows and pressures suitable for any type of drying.



  • MM-H Thermal head of 28-30°C with available air pressure from 110 to 270 Pa.
  • MM-W Thermal head of 28-30°C with available air pressure from 140 to 270 Pa.

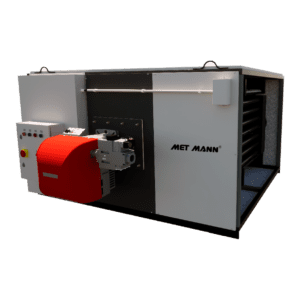

  • CP Thermal head of 18-20°C and available air pressure from 160 Pa to 280 Pa.

Instalation

Installation of equipment in a post-harvest drying process (fruit)

Industrial drying processes, varnish drying, paint booths, food industry, etc.















Characteristics

  • Completely compact and robust equipment.
  • Tubular heat exchanger with an efficiency greater than 90%.
  • Exterior finish in oven-dried polyester paint.
  • Thermal insulation by air chamber and/or fiberglass.
  • Centrifugal fan group with one or two turbines depending on the model.
  • Electrical control panel and protection according to European standards.
  • Air outlet on the left or right side depending on the needs of the installation.
  • Possibility of manufacturing customized equipment according to technical specifications (air flow, pressure, thermal jump, ATEX motors, etc.).
